Floating
Equipment
Precision float collars, guide shoes, and auto-fill valves engineered to withstand severe downhole flow rates, abrasive slurries, and backpressure containment.
Floating Equipment
Engineered for dependable casing run-in, cement containment, and backflow prevention across demanding wellbore geometries.

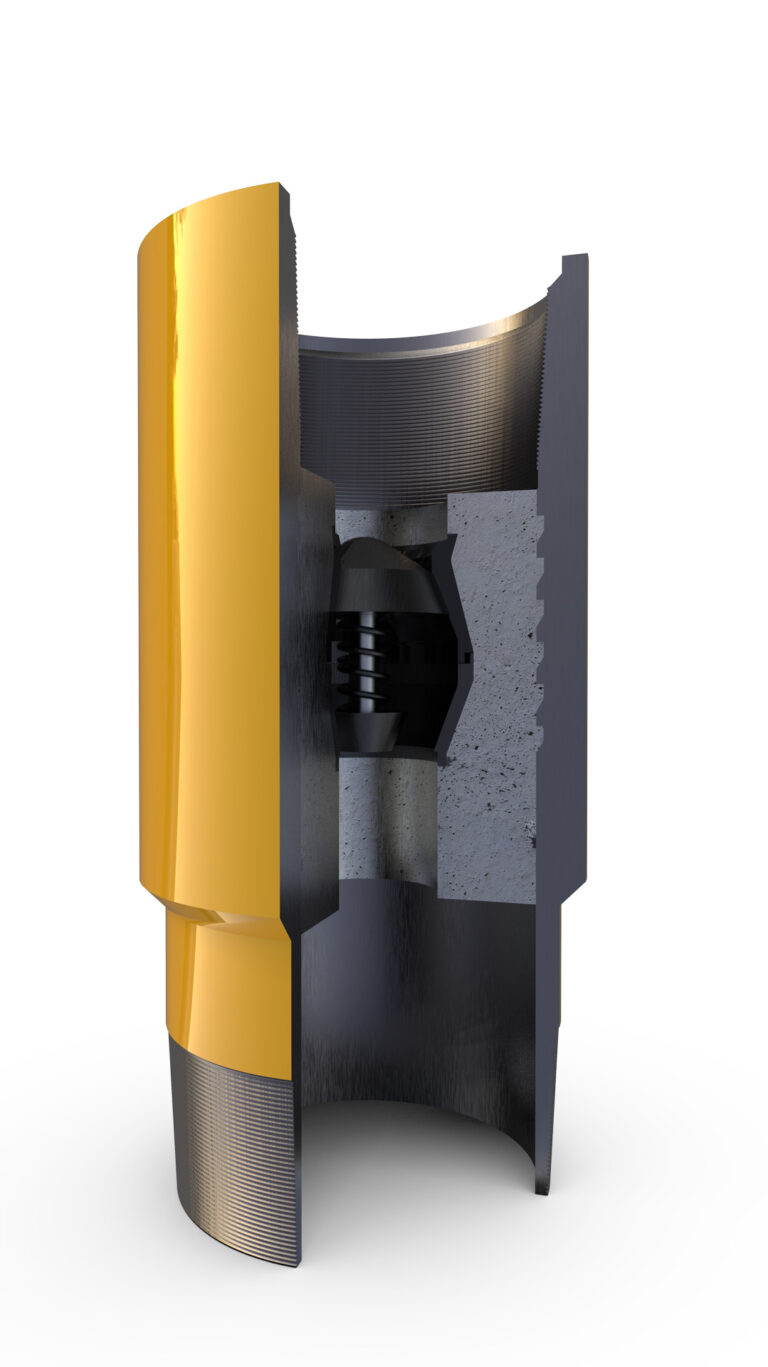

Float Collar
Prevents cement backflow, provides buoyant relief during string run-in, and acts as an internal barrier. Engineered with high-compressive cement and rapid PDC drill-out profiles.
- DrillabilityPDC Drillable
- Internal ValvePoppet / Plunger
- Flow DesignHigh-Volume Port
- MaterialCasing Grade API
Float Shoe
Guides the casing shoe through ledges and obstructions while serving as an active non-return valve against cement U-tubing back into the casing string.
- DrillabilityPDC Drillable
- Nose ProfileEccentric / Round
- Pressure RatingHigh Differential
- Valve TypeFlapper / Plunger
Reamer Shoe
Features an eccentric aluminum nose and Tungsten Carbide composite hardfacing to ream past tight spots, bridges, and severe wellbore doglegs.
- HardfacingTungsten Carbide
- Nose TypeEccentric Aluminum
- CapabilityActive Reaming
- Drillability100% Drillable

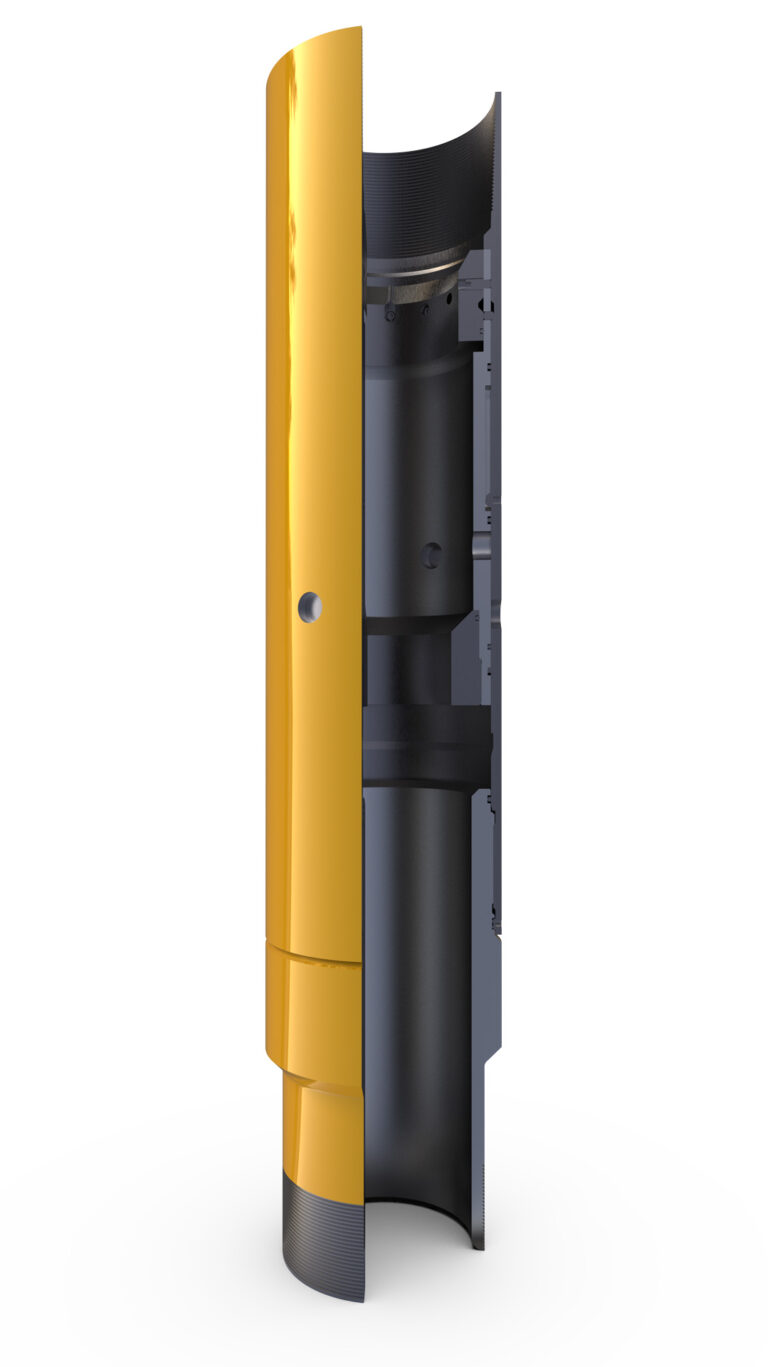

Mechanical Stage Cementing Collar
Enables multi-stage cement placement where formation fracture gradients or hydrostatic head prevent cementing the total column in a single lift.
- ActuationMechanical Wiper Plug
- Sleeve SystemDual Internal Shifting
- OperationStage Cementing
- Closing ModePressure Wipe Lock

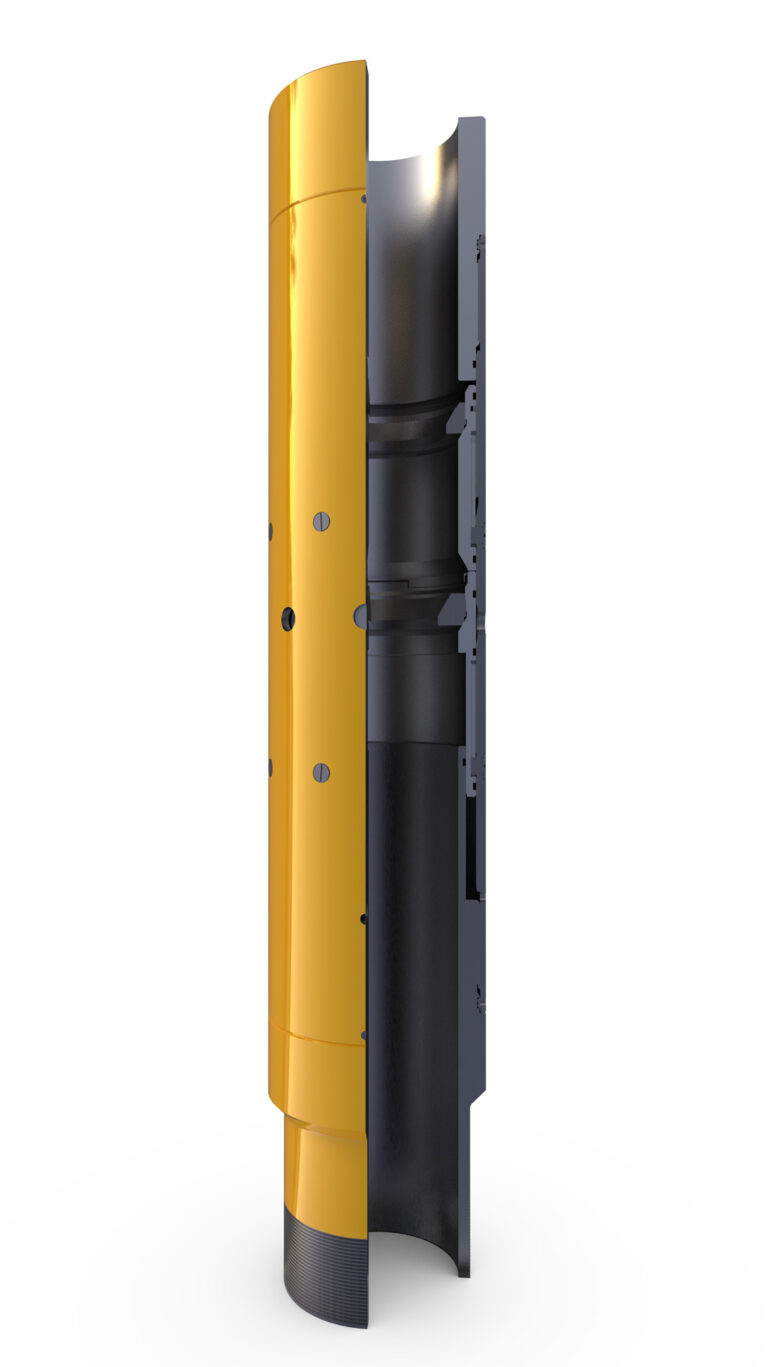

Hydraulic Stage Cementing Collar
Opens cementing ports hydraulically via predetermined shear pressure once the first stage lands, eliminating opening plug free-fall delays in deviated wells.
- ActuationHydraulic Pressure Shift
- Well GeometryDeviated / Horizontal
- PortsHigh-Rate Annular
- DrillabilityPDC Drillable Cast
